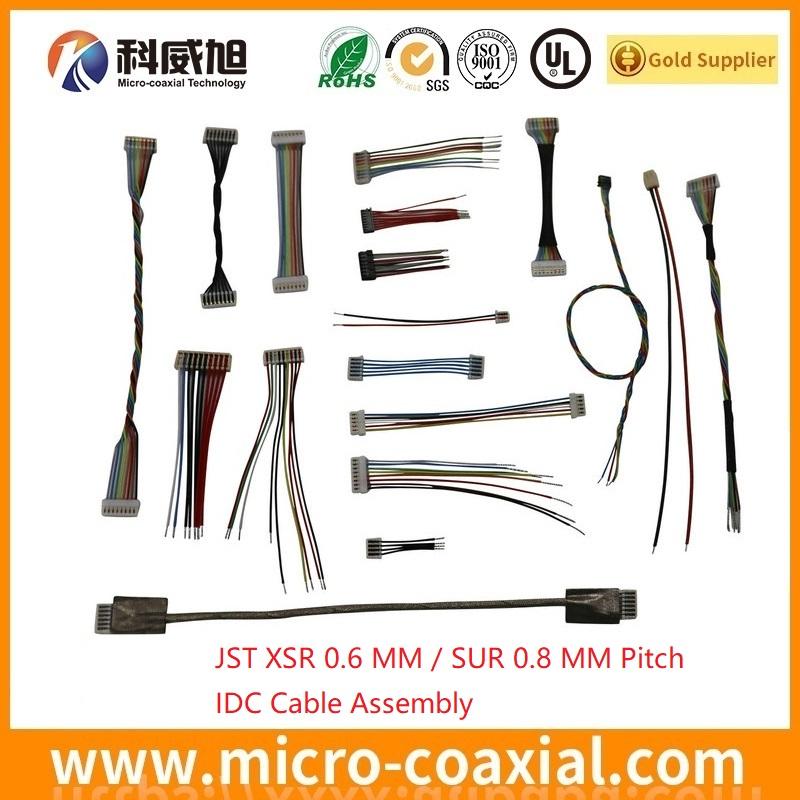

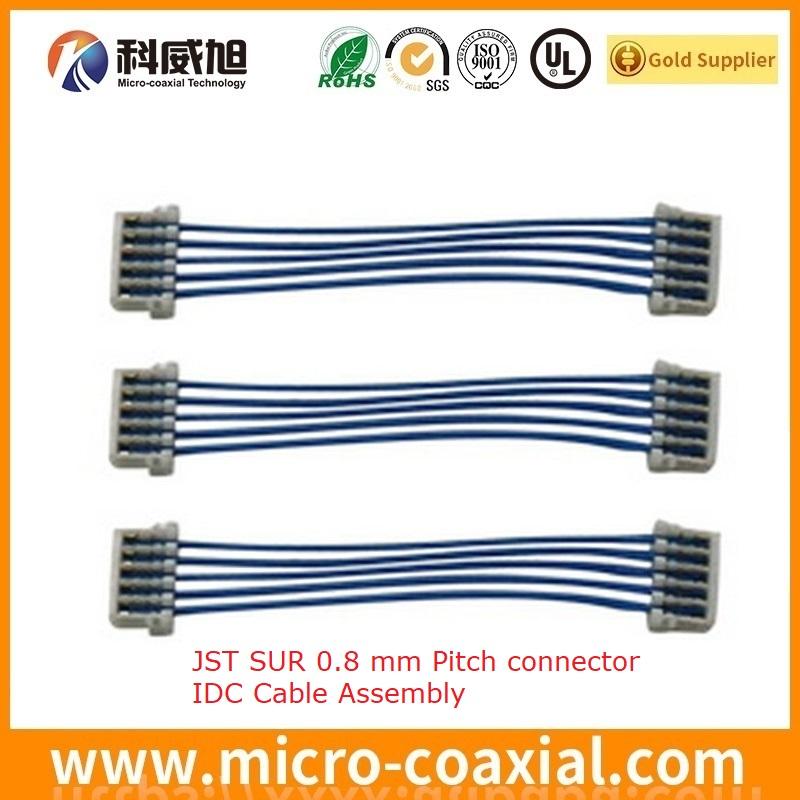

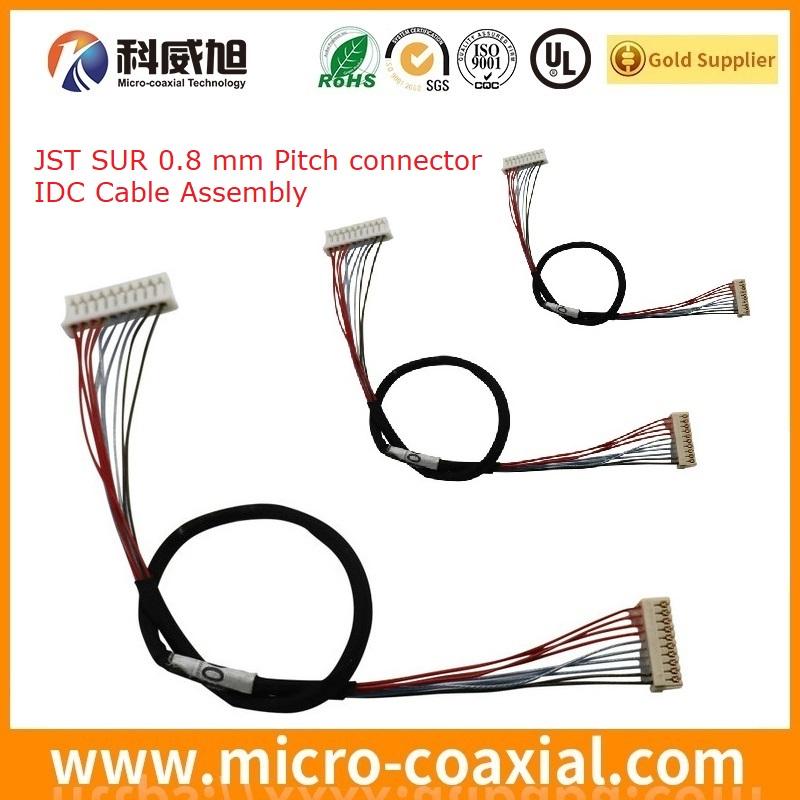

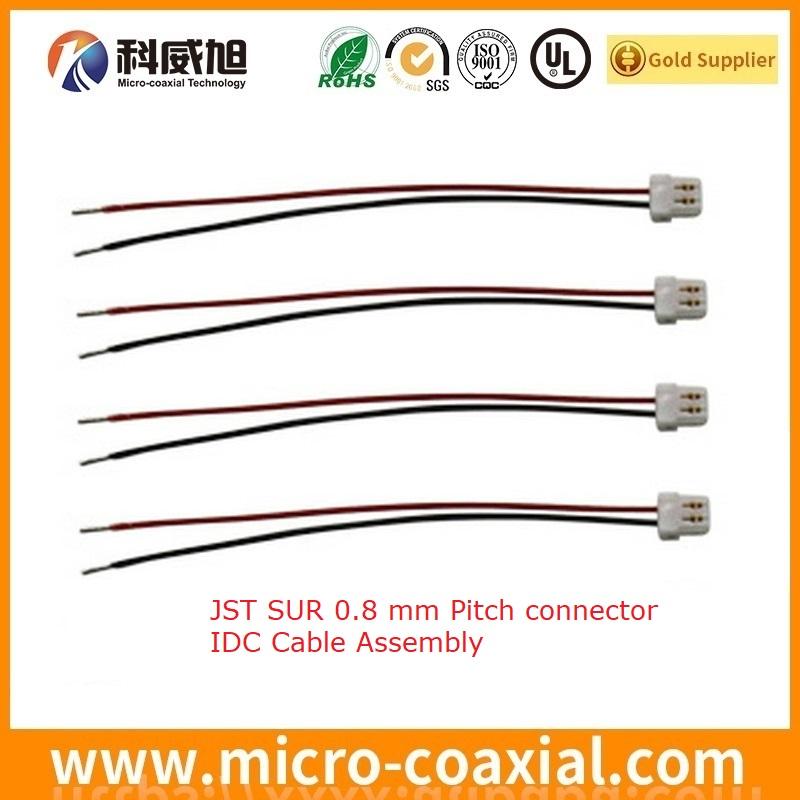

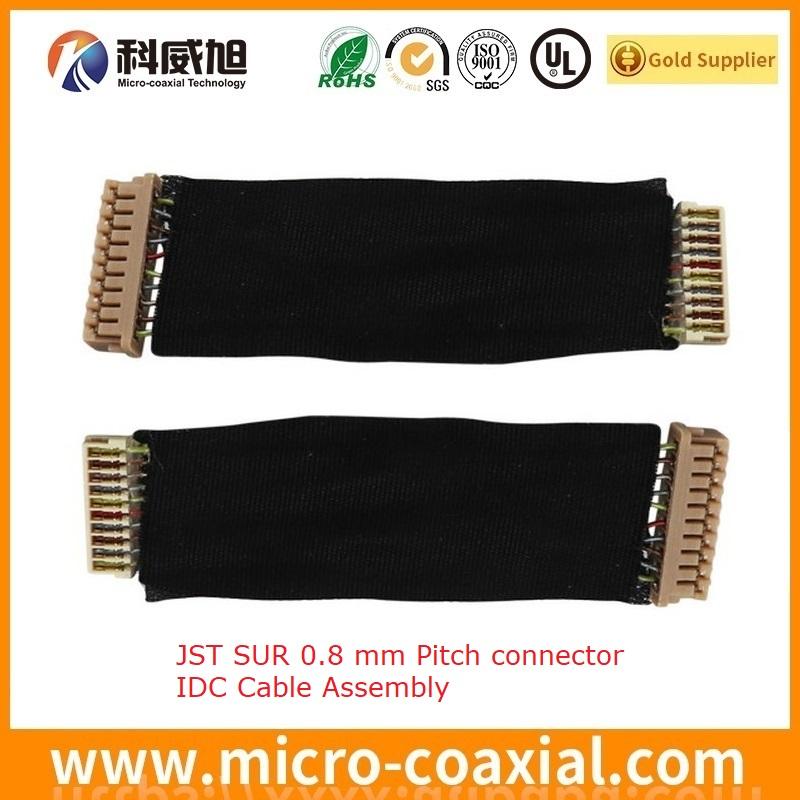

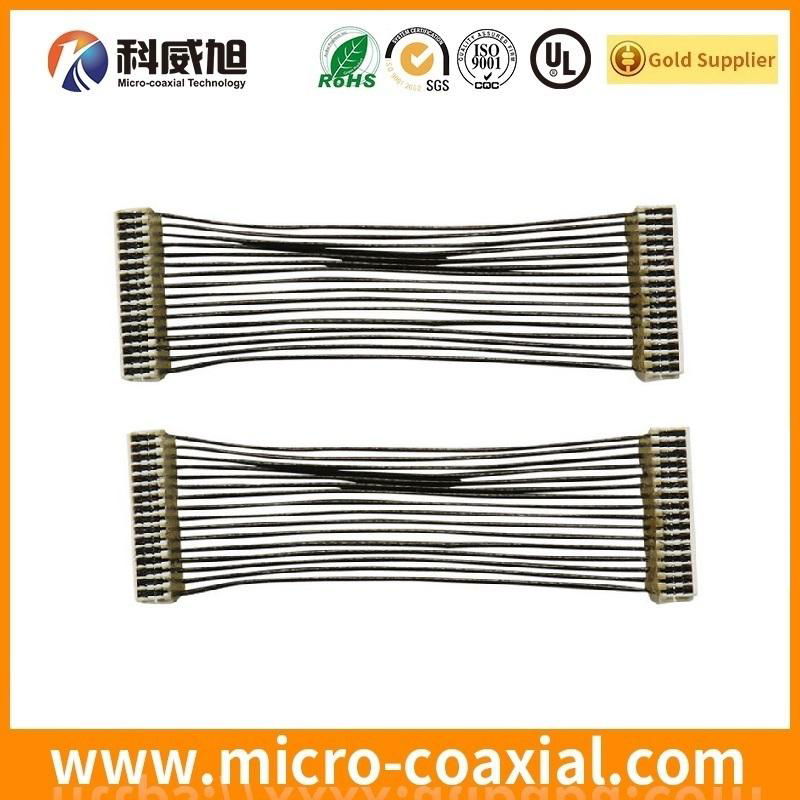

02SUR-32S 03SUR-32S 04SUR-32S 05SUR-32S 06SUR-32S JST SUR 0.8 MM IDC cable

The world's first 0.8 mm pitch wire-to-board insulation displacement connector. Side entry type is only 3.9 mm depth and1.75 mm height after mounting on the PC board, and top entry type is only 2.2 mm depth and 3.9 mm height. Compared to the conventional 1.0 mm pitch SSR connector, occupation space on the board is reduced by 34% (side entry type).

• 3-point grip construction

• Super fine wires are applicable

• Shrouded header

• Twin U-slot insulation displacement section

Specifications

• Current rating:  0.5 A AC, DC (AWG #32)  0.2 A AC, DC (AWG #36)

• Voltage rating:  30 V DC

• Temperature range:  -25 ̊C to +85 ̊C (including temperature rise in applying electrical current)

• Contact resistance:   Initial value/ 20 mΩmax. After environmental tests / 40 mΩmax.

• Insulation resistance:  100 MΩmin.

• Withstanding voltage:  200 VAC/minute

• Applicable wire: AWG #32, AWG #36

Welcome to contact us to Custom & OEM

E-mail:  sales@micro-coaxial.com
